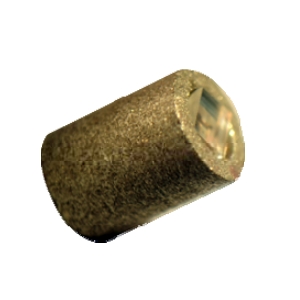

Polarization Independent Isolator Core

Fiber Optic Isolator by Puruisi Optoelectronics

Note: Your Quotation Request will be directed to Puruisi Optoelectronics.

The Polarization Independent Isolator Core from Puruisi Optoelectronics is a Fiber Optic Isolator with Optical Power 500 mW, Isolation >30 to 48 dB, Insertion Loss <0.12 to 0.25 dB, Wavelength 1310 nm, 1550 nm, Polarization Dependent Loss <0.05 dB. More details for Polarization Independent Isolator Core can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Polarization Independent Isolator Core
  • Manufacturer
    Puruisi Optoelectronics

General Parameters

  • Optical Power
    500 mW
  • Type
    Polarization Independent Isolator
  • Isolation
    >30 to 48 dB
  • Insertion Loss
    <0.12 to 0.25 dB
  • Accuracy
    ±15 nm, ±20 nm
  • Wavelength
    1310 nm, 1550 nm
  • Center Wavelength
    1310 nm, 1550 nm
  • Clear Aperture
    0.9 mm, 0.7 mm
  • Polarization Mode Dispersion
    <0.05 to 0.25 ps
  • Stage
    Single, Dual
  • Polarization Dependent Loss
    <0.05 dB

Environmental Conditions

  • Storage Temperature
    -40 to 85 Degree C

Physical Properties

  • Dimensions
    1.81 x 2.60 x 4.0 mm (Dia x L)

Applications

  • Application
    Isolator, WDIH
