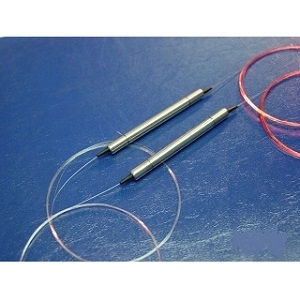

Polarization Insensitive Optical Isolator 1064nm

Fiber Optic Isolator by VFIBRE CABLE LIMITED
16 more products from this company
Request Quote

Note: Your Quotation Request will be directed to VFIBRE CABLE LIMITED.

The Polarization Insensitive Optical Isolator 1064nm from VFIBRE CABLE LIMITED is a Fiber Optic Isolator with Optical Power 300 mW, Isolation 30 to 45 dB, Insertion Loss 1.4 to 3.2 dB, Wavelength 1064 nm, Polarization Dependent Loss 0.15 dB. More details for Polarization Insensitive Optical Isolator 1064nm can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Polarization Insensitive Optical Isolator 1064nm
  • Manufacturer
    VFIBRE CABLE LIMITED

General Parameters

  • Optical Power
    300 mW
  • Type
    Polarization Insensitive Isolator
  • Isolation
    30 to 45 dB
  • Insertion Loss
    1.4 to 3.2 dB
  • Accuracy
    ±5 nm
  • Wavelength
    1064 nm
  • Center Wavelength
    1064 nm
  • Mode
    Single Mode
  • Peak Isolation
    40 to 55 dB
  • Stage
    Single, Dual
  • Tensile Load
    5 N
  • Polarization Dependent Loss
    0.15 dB
  • Return Loss
    50 to 55 dB

Environmental Conditions

  • Operating Temperature
    -5 to 50 Degree C
  • Storage Temperature
    -40 to 85 Degree C

Applications

  • Application
    EDFAs, Raman amplifiers, DWDM systems, Fiber laser, transmitters, transceivers and research

Fiber Parameters

  • Fiber Coupled
    Fiber Coupled
  • Fiber Type
    HI 1060 Fiber
