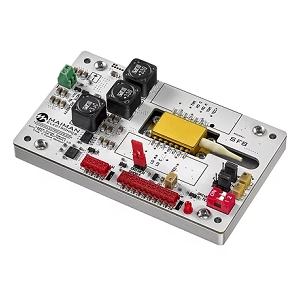

SF8300

Laser Diode Driver by Maiman Electronics
15 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Maiman Electronics.

The SF8300 from Maiman Electronics is a Laser Diode Driver with Compliance Voltage 0 to 3 V, Output Current 0 to 3000 mA, Pulse Width 1 to 5000 ms, Output Voltage 0 to 3 V, Input Voltage 4.8 to 5.2 V. More details for SF8300 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SF8300
  • Manufacturer
    Maiman Electronics
  • Description
    Laser Diode Driver with TEC Controller

Connections & Interface

  • Interface
    RS232, UART, BLUETOOTH, USB

General Parameters

  • Operation Mode
    Pulsed, CW / Quasi-CW(Pulsed)
  • Compliance Voltage
    0 to 3 V
  • Output Current
    0 to 3000 mA
  • Pulse Width
    1 to 5000 ms
  • Output Voltage
    0 to 3 V
  • Input Voltage
    4.8 to 5.2 V
  • RoHs
    Yes
  • Warranty
    1 Year

Applications

  • Applications
    Supplying laser diodes

Physical Properties

  • Dimensions
    101.6 x 61 x 20 mm
  • Weight
    136 g
