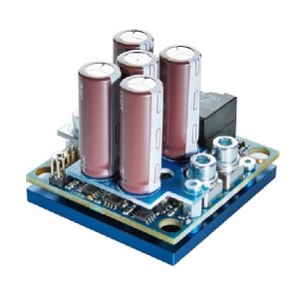

LDP-C 18-05

Laser Diode Driver by PicoLAS GmbH
60 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to PicoLAS GmbH.

The LDP-C 18-05 from PicoLAS GmbH is a Laser Diode Driver with Operating Temperature 0 to 55 Degree C, Output Current 1 to 18 A, Pulse Width 1 µs, Repetition Rate 500 kHz. More details for LDP-C 18-05 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LDP-C 18-05
  • Manufacturer
    PicoLAS GmbH
  • Description
    High Power Laser Diodes Driver

Environmental Conditions

  • Operating Temperature
    0 to 55 Degree C

General Parameters

  • Operation Mode
    Pulsed
  • Output Current
    1 to 18 A
  • Pulse Width
    1 µs
  • Repetition Rate
    500 kHz
  • Bandwidth
    16 kHz
  • Rise Time
    400 to 1 us
  • Power Dissipation
    12 W
  • Power Supply
    4 to 6 V DC
  • Note
    Current setting Input: 0 to 0.72 V, Trigger Input Voltage: 5 V TTL

Applications

  • Applications
    laser soldering and welding, generic surface treatment

Physical Properties

  • Dimensions
    60.9 x 57.8 x 54 mm
  • Weight
    194 g
