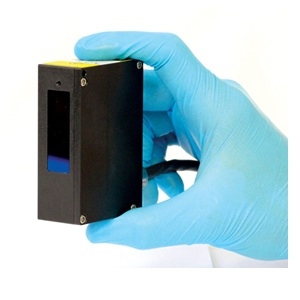

AR700-0125

Laser Displacement Sensor by Acuity Laser
14 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Acuity Laser.

The AR700-0125 from Acuity Laser is a Laser Displacement Sensor with Measure/Sensing Distance 3.175 mm (Span), Wavelength 650 nm, Sampling Rate 0.2 to 9400 Hz, Resolution 0.16 µm, Supply Voltage 15 to 24 VDC. More details for AR700-0125 can be seen below.

Product Specifications

Product Details

  • Part Number
    AR700-0125
  • Manufacturer
    Acuity Laser

General Parameters

  • Optical System
    Diffuse Reflection
  • Light Source
    Red Semiconductor Laser
  • Measuring Method
    Triangulation Sensors(1D)
  • Output Type
    Analog Output
  • Measure/Sensing Distance
    3.175 mm (Span)
  • Wavelength
    650 nm
  • Sampling Rate
    0.2 to 9400 Hz
  • Resolution
    0.16 µm
  • Supply Voltage
    15 to 24 VDC
  • Analog Current
    4 to 20 mA
  • Analog Voltage
    0 to 10 V
  • Beam Shape
    Spot
  • Cable Length
    2 m, 5 m, 10 m, 15 m
  • Laser Power
    1 mW
  • IP Rating
    IP67
  • Spot Size
    30 µm
  • Laser Class
    Class 2
  • Linearity
    ±0.03%, ±0.95 µm
  • Sample Rate
    0.2 to 9400 Hz
  • RoHs
    Yes
  • Standoff
    12.7 mm

Connections & Interface

  • Interface
    RS-232, RS-422

Environmental Conditions

  • Operating Temperature
    0 to 40 Degree C
  • Storage Temperature
    0 to 60 Degree C

Physical Properties

  • Weight
    370 g
