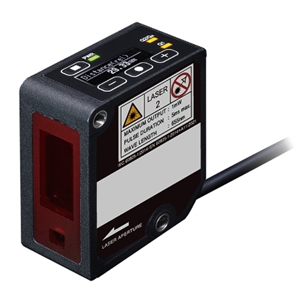

CD2H-130-485M12

Laser Displacement Sensor by Optex AOC
53 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Optex AOC.

The CD2H-130-485M12 from Optex AOC is a Laser Displacement Sensor with Measure/Sensing Distance 130 mm ±70 mm, Wavelength 655 nm, Sampling Rate 133.3 µs, 150 µs, 200 µs, 300 µs, 500 µs, 1 ms, 2 ms, 5 ms, Auto, Resolution 4 µm, Supply Voltage 18 to 24 VDC. More details for CD2H-130-485M12 can be seen below.

Product Specifications

Product Details

  • Part Number
    CD2H-130-485M12
  • Manufacturer
    Optex AOC
  • Description
    Laser Displacement Sensors

Applications

  • Application
    Detection of Uneven Winding, Measurement of Automobile Body Position, Sealing Inspection of Cupped Foods, Wind-off Measurement of Secondary Battery Film, Height Measurement of Mounted Components, resence Detection of Electronics Components, Detecting Seal

General Parameters

  • Optical System
    Diffuse Reflection
  • Light Source
    Red Semiconductor Laser
  • Measuring Method
    Triangulation Sensors(1D)
  • Output Type
    Analog Output
  • Measure/Sensing Distance
    130 mm ±70 mm
  • Wavelength
    655 nm
  • Measurement Range
    ±70 mm
  • Sampling Rate
    133.3 µs, 150 µs, 200 µs, 300 µs, 500 µs, 1 ms, 2 ms, 5 ms, Auto
  • Resolution
    4 µm
  • Accuracy (Repeat)
    4 µm
  • Ambient illuminance
    10000 lx
  • Supply Voltage
    18 to 24 VDC
  • Analog Current
    4 to 20 mA
  • Analog Voltage
    0 to 10 V
  • Beam Shape
    Spot
  • Cable Length
    300 mm
  • Case and cover material
    Polybutylene terephthalate
  • Certifications
    CE
  • Current Consumption
    70 to 80 mA
  • Display
    0.9 Inch OLED
  • Indicators
    Power indicator (green), Output indicators (orange x 2), IO-Link communication indicator (flashing green)
  • Laser Power
    0.39 mW
  • IP Rating
    IP67
  • Spot Size
    0.3 mm
  • Laser Class
    Class 1, Class I
  • Linearity
    ±0.1% F.S.
  • Load Impedance
    300 Ohms or less
  • Output Impedance
    100 Ohms or less
  • Relative Humidity
    35 to 85% RH
  • Ripples
    ±10%
  • RoHs
    Yes
  • Shock Resistance
    500 m/s2, 50 G, 3 Times
  • Temperature Drift/characteristics
    ±0.06% F.S./Degree C
  • Vibration Resistance
    10 to 55 Hz, 1.5 mm
  • Warm up time
    30 minutes
  • Window Material
    PMMA

Connections & Interface

  • Interface
    RS-485

Environmental Conditions

  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -20 to 60 Degree C

Physical Properties

  • Weight
    90 g
Click to view more product details on manufacturer's website
