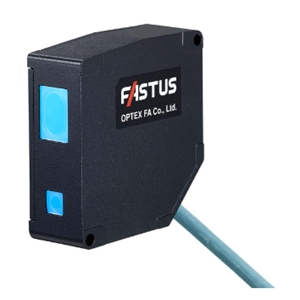

CDX-85A

Laser Displacement Sensor by Optex AOC
53 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Optex AOC.

The CDX-85A from Optex AOC is a Laser Displacement Sensor with Measure/Sensing Distance 85 mm (Diffuse), 81.5 mm (Specular), Wavelength 655 nm, Sampling Rate 12.5 µs, 25 µs, 50 µs, 100 µs, 200 µs, 500 µs, 1 ms, Auto, Resolution 0.25 µm, Supply Voltage 12 to 24 VDC. More details for CDX-85A can be seen below.

Product Specifications

Product Details

  • Part Number
    CDX-85A
  • Manufacturer
    Optex AOC
  • Description
    Ultra High-Accuracy Laser Displacement Sensors

Applications

  • Application
    Shape measurement of cam shafts, Shape measurement of tires, Flatness measurement of transmission parts, Deflection measurement of large diameter drills, Height inspection of smartphone frame, Warpage measurement of glass substrates

General Parameters

  • Optical System
    Diffuse Reflection, Regular / Specular Reflective
  • Light Source
    Red Semiconductor Laser
  • Measuring Method
    Triangulation Sensors(1D)
  • Measure/Sensing Distance
    85 mm (Diffuse), 81.5 mm (Specular)
  • Wavelength
    655 nm
  • Measurement Range
    ±20 mm (Diffuse), 10 mm (Specular)
  • Sampling Rate
    12.5 µs, 25 µs, 50 µs, 100 µs, 200 µs, 500 µs, 1 ms, Auto
  • Resolution
    0.25 µm
  • Ambient illuminance
    3000 lx (Incandescent lamp), 10000 (fluorescent)
  • Supply Voltage
    12 to 24 VDC
  • Beam Shape
    Spot
  • Cable Length
    500 mm (Connector)
  • Certifications
    CE
  • Current Consumption
    180 to 340 mA
  • Housing Material
    Aluminum die-cast
  • Indicators
    Link indicator (green) / power indicator (orange/green/blue/red)
  • Laser Power
    0.39 mW
  • IP Rating
    IP67
  • Spot Size
    70 µm
  • Laser Class
    Class 1
  • Linearity
    ±0.018 to ±0.03% F.S.
  • Relative Humidity
    35 to 85% RH
  • Ripples
    ±10%
  • RoHs
    Yes
  • Shock Resistance
    500 m/s2, 50 G, 3 Times
  • Temperature Drift/characteristics
    ±0.01 to ±0.03% F.S./Degree C
  • Vibration Resistance
    10 to 55 Hz, 1.5 mm
  • Warm up time
    30 minutes
  • Window Material
    Glass

Connections & Interface

  • Interface
    Ethernet

Environmental Conditions

  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -20 to 60 Degree C

Physical Properties

  • Weight
    280 g
