  5. BOD000M | BOD 21M-LA02-S92

BOD000M | BOD 21M-LA02-S92

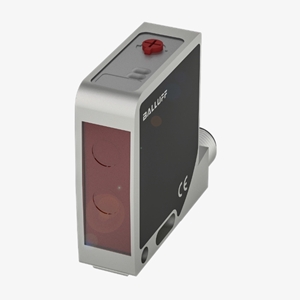

Laser Displacement Sensor by Balluff GmbH
6 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Balluff GmbH.

The BOD000M | BOD 21M-LA02-S92 from Balluff GmbH is a Laser Displacement Sensor with Measure/Sensing Distance 20 to 200 mm, Wavelength 650 nm, Response Time 300 ms (Ready), 7 ms (OFF, ON), Resolution 100 to 200 µm, Supply Voltage 18 to 30 VDC. More details for BOD000M | BOD 21M-LA02-S92 can be seen below.

Product Specifications

Product Details

  • Part Number
    BOD000M | BOD 21M-LA02-S92
  • Manufacturer
    Balluff GmbH

Applications

  • Application
    Distance measurement

General Parameters

  • Optical System
    Diffuse Reflection
  • Light Source
    Red Semiconductor Laser
  • Measuring Method
    Triangulation Sensors(1D)
  • Output Type
    Push-Pull Output, Analog Output, NPN Output, PNP Output
  • Measure/Sensing Distance
    20 to 200 mm
  • Wavelength
    650 nm
  • Response Time
    300 ms (Ready), 7 ms (OFF, ON)
  • Absolute Accuracy
    ±1% FS
  • Resolution
    100 to 200 µm
  • Accuracy (Repeat)
    1% FS
  • Ambient illuminance
    5000 lx
  • Supply Voltage
    18 to 30 VDC
  • Analog Voltage
    1 to 10 V
  • Beam Shape
    Spot
  • Certifications
    CE, WEEE
  • Delay
    300 ms (Ready_, 7 ms (OFF, ON)
  • Display
    Output function Output 1 - LED Yellow, LED green: Power
  • Housing Material
    Zinc, Die Casting Aluminium
  • Laser Power
    1 mW (Average), 1.2 mW (Pulse)
  • Spot Size
    1 mm
  • Laser Class
    Class 2
  • Linearity
    1.5 % (Distance)
  • Load Impedance
    2 kOhms
  • Operating Voltage
    18 to 30 VDC
  • Output Current
    50 mA (No- Load), 100 mA (Rated)
  • Pulse Duration
    3000 µs
  • Switching Frequency
    70 Hz
  • Switching Output Voltage Drop
    2 V

Connections & Interface

  • Connector
    M12 x 1

Physical Properties

  • Dimensions
    15 x 42.5 x 50 mm

Technical Documents
Click to view more product details on manufacturer's website
