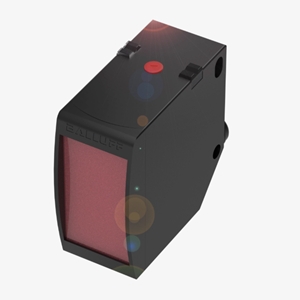

BOD0020 | BOD 23K-LI01-S4

Laser Displacement Sensor by Balluff GmbH
6 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Balluff GmbH.

The BOD0020 | BOD 23K-LI01-S4 from Balluff GmbH is a Laser Displacement Sensor with Measure/Sensing Distance 100 to 5000 mm, Wavelength 655 nm, Resolution 5000 µm, Supply Voltage 18 to 30 VDC, Laser Power 930 mW (Pulse). More details for BOD0020 | BOD 23K-LI01-S4 can be seen below.

Product Specifications

Product Details

  • Part Number
    BOD0020 | BOD 23K-LI01-S4
  • Manufacturer
    Balluff GmbH

Applications

  • Application
    Distance measurement

General Parameters

  • Optical System
    Diffuse Reflection
  • Light Source
    Red Semiconductor Laser
  • Measuring Method
    Long-range/Time of Flight (ToF) Sensors
  • Output Type
    Analog Output, NPN Output, PNP Output
  • Measure/Sensing Distance
    100 to 5000 mm
  • Wavelength
    655 nm
  • Absolute Accuracy
    ±0.6 % FS
  • Resolution
    5000 µm
  • Accuracy (Repeat)
    0.024 %FS
  • Ambient illuminance
    5000 lx
  • Supply Voltage
    18 to 30 VDC
  • Beam Shape
    Spot
  • Certifications
    CE, WEEE
  • Display
    LED green: Power, Switching state - LED yellow
  • Housing Material
    ABS
  • Laser Power
    930 mW (Pulse)
  • IP Rating
    IP67, IP69K
  • Spot Size
    5.5 x 7 mm
  • Laser Class
    Class II, Class 1
  • Operating Voltage
    18 to 30 VDC
  • Output Current
    50 mA (No- Load), 100 mA (Rated)
  • Pulse Duration
    0.008 µs
  • Pulse Repetition Rate
    45 kHz
  • Shock Resistance
    30 g , 11 ms
  • Switching Frequency
    500 Hz
  • Switching Hysterises
    15 mm
  • Switching Output Voltage Drop
    2 V
  • Tightening torque
    1.5 Nm
  • Vibration Resistance
    55 Hz, amplitude 1 mm, 3x30 min

Connections & Interface

  • Connector
    M12 x 1
  • Interface
    IO-Link

Environmental Conditions

  • Operating Temperature
    -40 to 60 Degree C

Physical Properties

  • Dimensions
    51 x 23 x 52.4 mm
