LM150KUQP | 810151

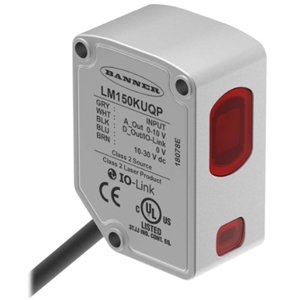

Laser Displacement Sensor by Banner Engineering
21 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Banner Engineering.

The LM150KUQP | 810151 from Banner Engineering is a Laser Displacement Sensor with Measure/Sensing Distance 50 to 150 mm, Wavelength 655 nm, Response Time 0.5 to 2048 ms, Resolution 1000 µm, Repeatability 2 µm. More details for LM150KUQP | 810151 can be seen below.

Product Specifications

Product Details

  • Part Number
    LM150KUQP | 810151
  • Manufacturer
    Banner Engineering

Applications

  • Application
    Analog & Discrete

General Parameters

  • Optical System
    Diffuse Reflection
  • Light Source
    Red Semiconductor Laser
  • Measuring Method
    Triangulation Sensors(1D)
  • Output Type
    Push-Pull Output, NPN Output, PNP Output
  • Measure/Sensing Distance
    50 to 150 mm
  • Wavelength
    655 nm
  • Response Time
    0.5 to 2048 ms
  • Resolution
    1000 µm
  • Accuracy (Repeat)
    ±0.2 mm
  • Repeatability
    2 µm
  • Ambient illuminance
    10000 lx
  • Supply Voltage
    10 to 30 VDC
  • Analog Current
    4 to 20 mA
  • Cable Length
    0.3 m
  • Certifications
    CE
  • Current Consumption
    <62 mA
  • Delay
    2.1 s
  • Housing Material
    Stainless Steel
  • IP Rating
    IP67
  • Laser Class
    Class 2
  • Linearity
    ±0.06 mm, ±0.07 mm
  • Ouput time
    0.25 to 4 ms (Rate)
  • Power Consumption
    1.5 W
  • Shock Resistance
    10 G, 30 G, 11 ms
  • Temperature Drift/characteristics
    ±0.008 mm/Degree C
  • Tightening torque
    1.5 N·m
  • Vibration Resistance
    10 to 60 Hz, 0.06 inch
  • Window Material
    Acrylic

Connections & Interface

  • Connector
    M12
  • Interface
    IO-Link

Environmental Conditions

  • Operating Temperature
    -10 to 55 Degree C
  • Storage Temperature
    -35 to 60 Degree C
