LTF12UC2LDQ | 94853

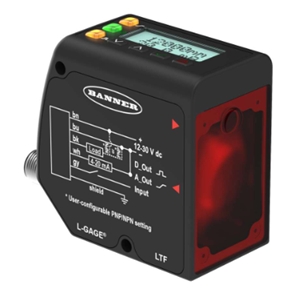

Laser Displacement Sensor by Banner Engineering
21 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Banner Engineering.

The LTF12UC2LDQ | 94853 from Banner Engineering is a Laser Displacement Sensor with Measure/Sensing Distance 50 to 12000 mm, Wavelength 660 nm, Response Time 1.5 ms, Resolution 300 to 3000 µm, Supply Voltage 12 to 30 VDC. More details for LTF12UC2LDQ | 94853 can be seen below.

Product Specifications

Product Details

  • Part Number
    LTF12UC2LDQ | 94853
  • Manufacturer
    Banner Engineering

Applications

  • Application
    Analog & Discrete

General Parameters

  • Optical System
    Diffuse Reflection
  • Light Source
    Red Semiconductor Laser
  • Measuring Method
    Long-range/Time of Flight (ToF) Sensors
  • Output Type
    Analog Output, NPN Output, PNP Output
  • Measure/Sensing Distance
    50 to 12000 mm
  • Wavelength
    660 nm
  • Response Time
    1.5 ms
  • Resolution
    300 to 3000 µm
  • Ambient illuminance
    40000 lx
  • Supply Voltage
    12 to 30 VDC
  • Analog Voltage
    0 to 10 V
  • Beam Shape
    Spot
  • Certifications
    CE
  • Current Consumption
    <85 mA
  • Delay
    2 s
  • Housing Material
    Zinc Alloy Die-Cast
  • IP Rating
    IP67
  • Spot Size
    6.5 mm, 10 mm, 12.5 mm, 35 mm
  • Laser Class
    Class 2
  • Ouput time
    0.5 ms (Rate)
  • Power Consumption
    <2.1 W
  • Shock Resistance
    MIL-STD-202G, Method 213B, Condition I (100G 6x along X, Y, and Z axes, 18 shocks)
  • Temperature Drift/characteristics
    ±0.25 mm/Degree C, ±0.5 mm/Degree C
  • Tightening torque
    2.6 N·m (23.0 in-lbs)
  • Vibration Resistance
    10 Hz to 55 Hz, 1.52 mm

Connections & Interface

  • Connector
    M12

Environmental Conditions

  • Operating Temperature
    -20 to 55 Degree C
  • Storage Temperature
    -30 to 65 Degree C
