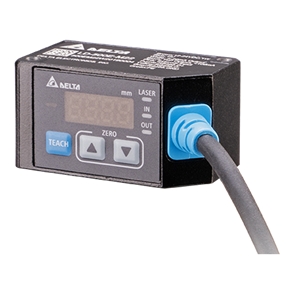

LD-100E-M22

Laser Displacement Sensor by Delta Electronics EMEA

Note: Your Quotation Request will be directed to Delta Electronics EMEA.

The LD-100E-M22 from Delta Electronics EMEA is a Laser Displacement Sensor with Measure/Sensing Distance 100 mm ±35 mm, Response Time Up to 1.5 ms, Repeatability 70 µm, Supply Voltage 12 to 24 V. More details for LD-100E-M22 can be seen below.

Product Specifications

Product Details

  • Part Number
    LD-100E-M22
  • Manufacturer
    Delta Electronics EMEA

General Parameters

  • Optical System
    Diffuse Reflection
  • Measuring Method
    Triangulation Sensors(1D)
  • Output Type
    Analog Output
  • Measure/Sensing Distance
    100 mm ±35 mm
  • Measurement Range
    ±35 mm
  • Response Time
    Up to 1.5 ms
  • Repeatability
    70 µm
  • Supply Voltage
    12 to 24 V
  • Analog Current
    4 to 20 mA
  • Beam Shape
    Spot
  • Certifications
    CE
  • IP Rating
    IP67
  • Spot Size
    136 x 110 µm
  • Linearity
    ±0.1% F.S
  • Power Consumption
    1 W
  • Reference distance
    100 mm

Connections & Interface

  • Interface
    Digital I/O Modbus Communication (RS-485)

Physical Properties

  • Dimensions
    44 x 25 x 24 mm
