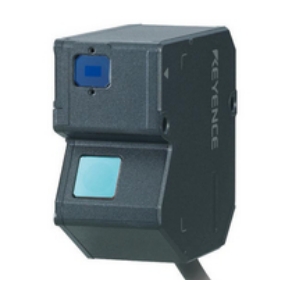

LK-H057

Laser Displacement Sensor by Keyence Deutschland

Note: Your Quotation Request will be directed to Keyence Deutschland.

The LK-H057 from Keyence Deutschland is a Laser Displacement Sensor with Measure/Sensing Distance 50 mm ±10 mm, Wavelength 655 nm, Sampling Rate 2.55 µs, 5 µs, 10 µs, 20 µs, 50 µs, 100 µs, 200 µs, 500 µs, 1000 µs, Repeatability 0.025 µm, Laser Power 0.95 mW. More details for LK-H057 can be seen below.

Product Specifications

Product Details

  • Part Number
    LK-H057
  • Manufacturer
    Keyence Deutschland

General Parameters

  • Optical System
    Diffuse Reflection
  • Light Source
    Red Semiconductor Laser
  • Measuring Method
    Triangulation Sensors(1D)
  • Measure/Sensing Distance
    50 mm ±10 mm
  • Wavelength
    655 nm
  • Measurement Range
    ±10 mm
  • Sampling Rate
    2.55 µs, 5 µs, 10 µs, 20 µs, 50 µs, 100 µs, 200 µs, 500 µs, 1000 µs
  • Repeatability
    0.025 µm
  • Ambient illuminance
    10000 lx
  • Beam Shape
    Spot
  • Coax Cable Material
    Aluminium die-cast
  • Laser Power
    0.95 mW
  • IP Rating
    IP67
  • Spot Size
    50 x 2000 µm
  • Laser Class
    Class 2, Class II
  • Linearity
    ±0.02% F.S.
  • Reference distance
    50 mm
  • Relative Humidity
    35 to 85% RH
  • Temperature Drift/characteristics
    0.01% of F.S.
  • Vibration Resistance
    10 to 55 Hz, 1.5 mm

Environmental Conditions

  • Operating Temperature
    0 to 50 Degree C

Physical Properties

  • Weight
    260 g
