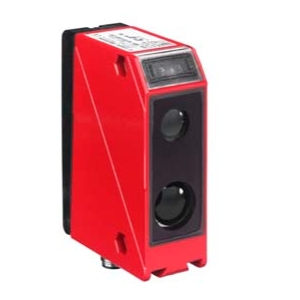

ODS 96B M/V6-600-S12 | 50106721

Laser Displacement Sensor by Leuze
30 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Leuze.

The ODS 96B M/V6-600-S12 | 50106721 from Leuze is a Laser Displacement Sensor with Measure/Sensing Distance 100 to 600 mm, Wavelength 880 nm, Response Time <15 ms, Resolution 100 to 500, Supply Voltage 18 to 30 VDC. More details for ODS 96B M/V6-600-S12 | 50106721 can be seen below.

Product Specifications

Product Details

  • Part Number
    ODS 96B M/V6-600-S12 | 50106721
  • Manufacturer
    Leuze

General Parameters

  • Optical System
    Diffuse Reflection
  • Light Source
    Infrared Semiconductor Laser
  • Measuring Method
    Triangulation Sensors(1D)
  • Output Type
    Push-Pull Output, Analog Output, NPN Output, PNP Output
  • Measure/Sensing Distance
    100 to 600 mm
  • Wavelength
    880 nm
  • Response Time
    <15 ms
  • Resolution
    100 to 500
  • Accuracy (Repeat)
    ±1.5%
  • Supply Voltage
    18 to 30 VDC
  • Analog Current
    4 to 20 mA
  • Analog Voltage
    1 to 10 V
  • Beam Shape
    Spot
  • Case and cover material
    Glass
  • Certifications
    CE
  • Display
    OLED display
  • Housing Material
    Diecast zinc
  • Indicators
    Green LED continuous light flashing off, Yellow LED continuous light flashing off
  • IP Rating
    IP67, IP69K
  • Spot Size
    15 x 15 mm
  • Reproducibility
    ±0.5%
  • Ripples
    <15%

Connections & Interface

  • Connector
    M12

Environmental Conditions

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -30 to 70 Degree C

Physical Properties

  • Weight
    380 g
