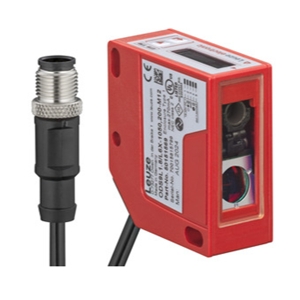

ODS9L1.8/L6X-1050,200-M12 | 50151569

Laser Displacement Sensor by Leuze
30 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Leuze.

The ODS9L1.8/L6X-1050,200-M12 | 50151569 from Leuze is a Laser Displacement Sensor with Measure/Sensing Distance 50 to 1050 mm, Wavelength 650 nm, Response Time 8 ms, Resolution 100 µm, Supply Voltage 18 to 30 VDC. More details for ODS9L1.8/L6X-1050,200-M12 | 50151569 can be seen below.

Product Specifications

Product Details

  • Part Number
    ODS9L1.8/L6X-1050,200-M12 | 50151569
  • Manufacturer
    Leuze

Applications

  • Application
    Fill-level monitoring, Length measurement in material cutting, Object measurement

General Parameters

  • Optical System
    Diffuse Reflection
  • Light Source
    Red Semiconductor Laser
  • Measuring Method
    Triangulation Sensors(1D)
  • Output Type
    Push-Pull Output, NPN Output, PNP Output
  • Measure/Sensing Distance
    50 to 1050 mm
  • Wavelength
    650 nm
  • Response Time
    8 ms
  • Resolution
    100 µm
  • Supply Voltage
    18 to 30 VDC
  • Beam Shape
    Spot
  • Case and cover material
    Glass
  • Certifications
    CE
  • Display
    OLED display
  • Housing Material
    Plastic
  • IP Rating
    IP67
  • Spot Size
    1.5 mm
  • Laser Class
    Class 1
  • Pulse Duration
    22000 µs
  • Reproducibility
    0.2 mm
  • Ripples
    0 to 15 %
  • Temperature Drift/characteristics
    0.02 %/K

Connections & Interface

  • Connector
    M12-5 Pin
  • Interface
    IO-Link

Environmental Conditions

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -30 to 70 Degree C

Physical Properties

  • Dimensions
    21 x 50 x 50 mm (W x H x L)
  • Weight
    50 g
