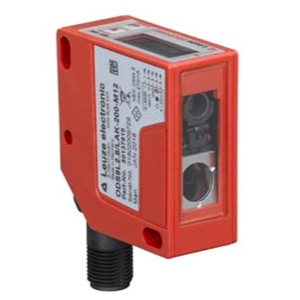

ODS9L2.8/LAK-100-M12 | 50137820

Laser Displacement Sensor by Leuze
30 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Leuze.

The ODS9L2.8/LAK-100-M12 | 50137820 from Leuze is a Laser Displacement Sensor with Measure/Sensing Distance 50 to 100 mm, Wavelength 650 nm, Response Time 1 ms, Resolution 10 µm, Supply Voltage 18 to 30 VDC. More details for ODS9L2.8/LAK-100-M12 | 50137820 can be seen below.

Product Specifications

Product Details

  • Part Number
    ODS9L2.8/LAK-100-M12 | 50137820
  • Manufacturer
    Leuze
  • Description
    100 mm max. measurement distance, IO-Link interface, analog output, multifunction input

Applications

  • Application
    Fill-level monitoring, Length measurement in material cutting, Object measurement

General Parameters

  • Optical System
    Diffuse Reflection
  • Light Source
    Red Semiconductor Laser
  • Measuring Method
    Triangulation Sensors(1D)
  • Output Type
    Push-Pull Output, NPN Output, PNP Output
  • Measure/Sensing Distance
    50 to 100 mm
  • Wavelength
    650 nm
  • Response Time
    1 ms
  • Resolution
    10 µm
  • Supply Voltage
    18 to 30 VDC
  • Beam Shape
    Spot
  • Case and cover material
    Glass
  • Certifications
    CE
  • Display
    OLED display
  • Housing Material
    Plastic
  • IP Rating
    IP67
  • Spot Size
    1 mm
  • Laser Class
    Class 2
  • Pulse Duration
    22000 µs
  • Reproducibility
    0.05 mm
  • Ripples
    0 to 15 %
  • Temperature Drift/characteristics
    0.02 %/K

Connections & Interface

  • Connector
    M12-5 Pin
  • Interface
    IO-Link

Environmental Conditions

  • Operating Temperature
    -20 to 50 Degree C
  • Storage Temperature
    -30 to 70 Degree C

Physical Properties

  • Dimensions
    21 x 50 x 50 mm (W x H x L)
  • Weight
    50 g
