ZP-LS300S(C)

Laser Displacement Sensor by Omron Americas
42 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Omron Americas.

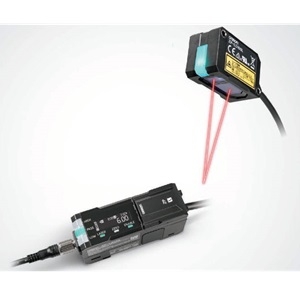

The ZP-LS300S(C) from Omron Americas is a Laser Displacement Sensor with Measure/Sensing Distance 150 to 450 mm, Wavelength 660 nm, Resolution 4 µm, Repeatability 4 µm, Laser Power 1 mW, 0.376 mW. More details for ZP-LS300S(C) can be seen below.

Product Specifications

Product Details

  • Part Number
    ZP-LS300S(C)
  • Manufacturer
    Omron Americas

General Parameters

  • Optical System
    Diffuse Reflection
  • Light Source
    Red Semiconductor Laser
  • Measuring Method
    Triangulation Sensors(1D)
  • Output Type
    Analog Output
  • Measure/Sensing Distance
    150 to 450 mm
  • Wavelength
    660 nm
  • Resolution
    4 µm
  • Repeatability
    4 µm
  • Ambient illuminance
    5000 lx
  • Beam Shape
    Spot
  • Cable Length
    2 m, 0.2 m
  • Case and cover material
    Polybutylene terephthalate
  • Coax Cable Material
    PVC
  • Dielectric Strength
    1000 VAC 50/60 Hz
  • Indicators
    HIGH (orange)/PASS (green)/LOW (orange), Out of range (white), Error (red), SETTING mode (blue)
  • Insulation Resistance
    20 MOhms
  • Laser Power
    1 mW, 0.376 mW
  • IP Rating
    IP67
  • Spot Size
    310 µm
  • Laser Class
    Class 2, Class 1
  • Linearity
    ±0.04 to ±0.125% F.S
  • Reference distance
    300 mm
  • Relative Humidity
    35 to 85% RH
  • Shock Resistance
    300 m/s2, 3 times
  • Temperature Drift/characteristics
    0.01% F.S./Degree C
  • Threaded Portion
    SUS304
  • Vibration Resistance
    10 to 500 Hz, 1.5 mm
  • Window Material
    Glass

Connections & Interface

  • Interface
    RS-232C

Environmental Conditions

  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -15 to 70 Degree C

Physical Properties

  • Weight
    110 g (Cable length: 2 m), 70 g (Cable length: 0.2 m)
