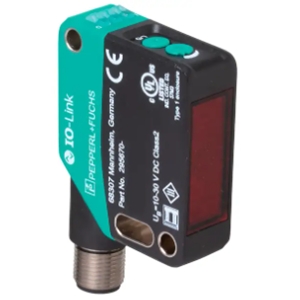

OMD10M-R200-2EP-IO-V1-L

Laser Displacement Sensor by Pepperl+Fuchs
49 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Pepperl+Fuchs.

The OMD10M-R200-2EP-IO-V1-L from Pepperl+Fuchs is a Laser Displacement Sensor with Measure/Sensing Distance 0.03 to 10 m, Wavelength 660 nm, Resolution 1000 µm, Supply Voltage 10 to 30 VDC. More details for OMD10M-R200-2EP-IO-V1-L can be seen below.

Product Specifications

Product Details

  • Part Number
    OMD10M-R200-2EP-IO-V1-L
  • Manufacturer
    Pepperl+Fuchs

General Parameters

  • Optical System
    Diffuse Reflection
  • Light Source
    Red Semiconductor Laser
  • Measuring Method
    Pulse Ranging Technology (PRT)
  • Output Type
    Push-Pull Output
  • Measure/Sensing Distance
    0.03 to 10 m
  • Wavelength
    660 nm
  • Resolution
    1000 µm
  • Accuracy (Repeat)
    <3 mm
  • Ambient illuminance
    10000 to 50000 lx
  • Supply Voltage
    10 to 30 VDC
  • Beam Divergence
    2 mrad
  • Beam Shape
    Spot
  • Certifications
    CE
  • Housing Material
    PC, PMMA
  • Indicators
    LED green (Operation), LED yellow (Function)
  • IP Rating
    IP67, IP69, IP69K
  • Spot Size
    <20 mm
  • Laser Class
    Class 1
  • Operating Voltage
    10 to 30 VDC
  • Output Current
    100 mA
  • Pulse Duration
    4 ns
  • Pulse Energy
    <1.3 nJ
  • Pulse Repetition Rate
    300 kHz
  • Reference distance
    100 x 100 mm
  • Switching Output Voltage Drop
    <1.5 VDC
  • Switching Voltage
    30 VDC

Connections & Interface

  • Connector
    M12-4 Pin
  • Interface
    IO-Link

Environmental Conditions

  • Operating Temperature
    -30 to 60 Degree C
  • Storage Temperature
    -40 to 70 Degree C

Physical Properties

  • Dimensions
    50.6 x 15 x 41.7 mm (H x W x D)
  • Weight
    37 g
