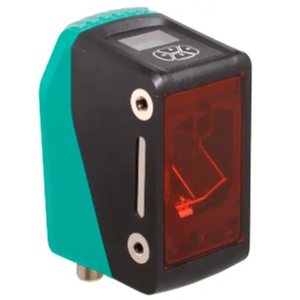

OMR50M-R1000-SSI-V1V1B-T

Laser Displacement Sensor by Pepperl+Fuchs
49 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Pepperl+Fuchs.

The OMR50M-R1000-SSI-V1V1B-T from Pepperl+Fuchs is a Laser Displacement Sensor with Measure/Sensing Distance 0.3 to 50 m, Wavelength 660 nm, Resolution 100 µm, Supply Voltage 10 to 30 VDC. More details for OMR50M-R1000-SSI-V1V1B-T can be seen below.

Product Specifications

Product Details

  • Part Number
    OMR50M-R1000-SSI-V1V1B-T
  • Manufacturer
    Pepperl+Fuchs

General Parameters

  • Optical System
    Regular / Specular Reflective
  • Light Source
    Red Semiconductor Laser
  • Measuring Method
    Pulse Ranging Technology (PRT)
  • Output Type
    Push-Pull Output
  • Measure/Sensing Distance
    0.3 to 50 m
  • Wavelength
    660 nm
  • Absolute Accuracy
    ±2.5 mm
  • Resolution
    100 µm
  • Accuracy (Repeat)
    <1 mm
  • Ambient illuminance
    >80000 lx
  • Supply Voltage
    10 to 30 VDC
  • Beam Divergence
    <5 mrad
  • Beam Shape
    Spot
  • Certifications
    CE
  • Housing Material
    ABS / PC, PMMA , hard coated
  • Indicators
    6 LEDs
  • IP Rating
    IP67
  • Spot Size
    <25 cm
  • Laser Class
    Class 1
  • Operating Voltage
    10 to 30 VDC
  • Output Current
    100 mA
  • Pulse Duration
    5 ns
  • Pulse Energy
    <2 nJ
  • Pulse Repetition Rate
    300 kHz
  • Reference distance
    500 x 500 mm, 250 x 250 mm
  • Switching Output Voltage Drop
    <1.5 VDC
  • Switching Voltage
    30 VDC
  • Temperature Drift/characteristics
    0.03 mm/K

Connections & Interface

  • Connector
    M12-4 Pin, 5 Pin
  • Interface
    SSI, RS-422

Environmental Conditions

  • Operating Temperature
    -30 to 60 Degree C
  • Storage Temperature
    -40 to 75 Degree C

Physical Properties

  • Dimensions
    106.6 x 55 x 80.6 mm (H x W x D)
  • Weight
    300 g
