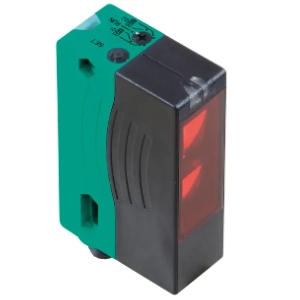

OMR50M-R300-IEP-V1

Laser Displacement Sensor by Pepperl+Fuchs
49 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Pepperl+Fuchs.

The OMR50M-R300-IEP-V1 from Pepperl+Fuchs is a Laser Displacement Sensor with Measure/Sensing Distance 0 to 50 m, Wavelength 680 nm, Response Time 5 ms, Resolution 500 µm, Supply Voltage 10 to 30 VDC. More details for OMR50M-R300-IEP-V1 can be seen below.

Product Specifications

Product Details

  • Part Number
    OMR50M-R300-IEP-V1
  • Manufacturer
    Pepperl+Fuchs

General Parameters

  • Optical System
    Diffuse Reflection
  • Light Source
    Red Semiconductor Laser
  • Measuring Method
    Pulse Ranging Technology (PRT)
  • Output Type
    Push-Pull Output
  • Measure/Sensing Distance
    0 to 50 m
  • Wavelength
    680 nm
  • Response Time
    5 ms
  • Resolution
    500 µm
  • Accuracy (Repeat)
    <5 mm
  • Ambient illuminance
    50000 lx
  • Supply Voltage
    10 to 30 VDC
  • Analog Current
    4 to 20 mA
  • Beam Shape
    Spot
  • Certifications
    CE
  • Housing Material
    Plastic ABS, PMMA , hard coated
  • Indicators
    LED green (Operation), 2 LED yellow (Function)
  • IP Rating
    IP67
  • Spot Size
    16 x 18 cm
  • Operating Voltage
    10 to 30 VDC
  • Output Current
    100 mA
  • Reference distance
    0.2 to 50 m
  • Switching Frequency
    50 Hz
  • Switching Voltage
    30 VDC

Connections & Interface

  • Connector
    M12-4 Pin

Environmental Conditions

  • Operating Temperature
    -40 to 55 Degree C
  • Storage Temperature
    -40 to 70 Degree C

Physical Properties

  • Dimensions
    88 x 25.8 x 54.3 mm (H x W x D)
  • Weight
    90 g
