OMT300-R200-UEP-IO-V1

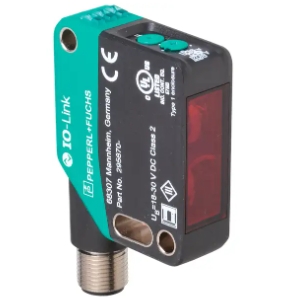

Laser Displacement Sensor by Pepperl+Fuchs
49 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Pepperl+Fuchs.

The OMT300-R200-UEP-IO-V1 from Pepperl+Fuchs is a Laser Displacement Sensor with Measure/Sensing Distance 100 to 300 mm, Wavelength 680 nm, Response Time 2 ms, Resolution 100 µm, Supply Voltage 18 to 30 VDC. More details for OMT300-R200-UEP-IO-V1 can be seen below.

Product Specifications

Product Details

  • Part Number
    OMT300-R200-UEP-IO-V1
  • Manufacturer
    Pepperl+Fuchs

General Parameters

  • Optical System
    Diffuse Reflection
  • Light Source
    Red Semiconductor Laser
  • Measuring Method
    Multi Pixel Technology (MPT)
  • Output Type
    Push-Pull Output, Analog Output, NPN Output, PNP Output
  • Measure/Sensing Distance
    100 to 300 mm
  • Wavelength
    680 nm
  • Response Time
    2 ms
  • Resolution
    100 µm
  • Accuracy (Repeat)
    <0.5%
  • Ambient illuminance
    45000 lx
  • Supply Voltage
    18 to 30 VDC
  • Analog Voltage
    0 to 10 V
  • Beam Shape
    Spot
  • Certifications
    CE
  • Housing Material
    PC, PMMA
  • Indicators
    LED green (Operation), LED yellow (Function)
  • IP Rating
    IP67, IP69, IP69K
  • Spot Size
    8 mm
  • Linearity
    0.5% (Error)
  • Operating Voltage
    18 to 30 VDC
  • Output Current
    100 mA
  • Reference distance
    100 x 100 mm
  • Switching Output Voltage Drop
    <1.5 VDC
  • Switching Voltage
    30 VDC
  • Temperature Drift/characteristics
    0.05 %/K
  • Warm up time
    5 minutes

Connections & Interface

  • Connector
    M12-4 Pin
  • Interface
    IO-Link

Environmental Conditions

  • Operating Temperature
    10 to 50 Degree C
  • Storage Temperature
    -40 to 70 Degree C

Physical Properties

  • Dimensions
    50.6 x 15 x 41.7 mm (H x W x D)
  • Weight
    37 g
