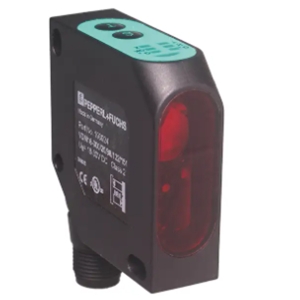

VDM18-300/32/105/122

Laser Displacement Sensor by Pepperl+Fuchs
49 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Pepperl+Fuchs.

The VDM18-300/32/105/122 from Pepperl+Fuchs is a Laser Displacement Sensor with Measure/Sensing Distance 80 to 300 mm, Wavelength 650 nm, Response Time 0.4 ms, Resolution <0.1%, Supply Voltage 18 to 30 VDC. More details for VDM18-300/32/105/122 can be seen below.

Product Specifications

Product Details

  • Part Number
    VDM18-300/32/105/122
  • Manufacturer
    Pepperl+Fuchs

General Parameters

  • Optical System
    Diffuse Reflection
  • Light Source
    Red Semiconductor Laser
  • Measuring Method
    Triangulation Sensors(1D)
  • Output Type
    Push-Pull Output, Analog Output
  • Measure/Sensing Distance
    80 to 300 mm
  • Wavelength
    650 nm
  • Response Time
    0.4 ms
  • Resolution
    <0.1%
  • Accuracy (Repeat)
    <0.25%
  • Ambient illuminance
    <5000 lx
  • Supply Voltage
    18 to 30 VDC
  • Analog Current
    4 to 20 mA
  • Beam Shape
    Spot
  • Certifications
    CE
  • Housing Material
    ABS, PMMA
  • Indicators
    LED green (Operation)
  • IP Rating
    IP67
  • Spot Size
    2 x 4.5 mm
  • Laser Class
    Class 2
  • Lifetime
    50000 h
  • Operating Voltage
    18 to 30 VDC
  • Output Current
    100 mA
  • Switching Frequency
    <1 kHz
  • Switching Voltage
    30 VDC
  • Temperature Drift/characteristics
    <0.02%/Degree C

Connections & Interface

  • Connector
    M12-5 Pin

Environmental Conditions

  • Operating Temperature
    -10 to 60 Degree C
  • Storage Temperature
    -20 to 80 Degree C

Physical Properties

  • Dimensions
    50 x 17 x 50 mm (H x W x D)
  • Weight
    43 g
