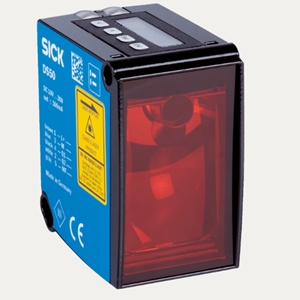

DT50-P1123 | 1047118

Laser Displacement Sensor by SICK AG
49 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to SICK AG.

The DT50-P1123 | 1047118 from SICK AG is a Laser Displacement Sensor with Measure/Sensing Distance 200 to 10000 mm, Wavelength 658 nm, Response Time 20 ms to 30 ms, 20 ms / 30 ms, Resolution 1000 µm, Repeatability 2500 µm. More details for DT50-P1123 | 1047118 can be seen below.

Product Specifications

Product Details

  • Part Number
    DT50-P1123 | 1047118
  • Manufacturer
    SICK AG

General Parameters

  • Optical System
    Diffuse Reflection
  • Light Source
    Red Semiconductor Laser
  • Measuring Method
    Long-range/Time of Flight (ToF) Sensors
  • Output Type
    PNP Output
  • Measure/Sensing Distance
    200 to 10000 mm
  • Wavelength
    658 nm
  • Response Time
    20 ms to 30 ms, 20 ms / 30 ms
  • Absolute Accuracy
    ±10 mm
  • Resolution
    1000 µm
  • Repeatability
    2500 µm
  • Ambient illuminance
    40,000 lx
  • Supply Voltage
    10 to 30 VDC
  • Analog Current
    4 to 20 mA
  • Beam Shape
    Spot
  • Cable Length
    2 m
  • Display
    LC display, 2 x LED
  • Housing Material
    Metal (zinc diecast)
  • IP Rating
    IP65
  • Spot Size
    15 x 15 mm
  • Laser Class
    Class 1
  • Lifetime
    100000 h
  • Ouput time
    >4 ms
  • Output Current
    <100 mA
  • Power Consumption
    <2.1 W
  • Relative Humidity
    <95%
  • Ripples
    <5 Vpp
  • Shock Resistance
    EN 60068-2-27
  • Switching Hysterises
    10 mm to 1000 mm
  • Vibration Resistance
    EN 60068-2-6, EN 60068-2-64
  • Warm up time
    <15 minutes
  • Window Material
    Plastic (PMMA)

Connections & Interface

  • Connector
    Plug, M12, 5-pin

Environmental Conditions

  • Operating Temperature
    -30 to 140 Degree C
  • Storage Temperature
    -40 to 75 Degree C

Physical Properties

  • Dimensions
    36.1 mm x 62.7 mm x 57.7 mm (W x H x D)
  • Weight
    200 g
