DT80-311111 | 1118113

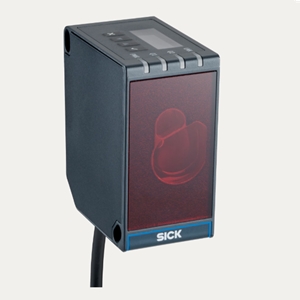

Laser Displacement Sensor by SICK AG
49 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to SICK AG.

The DT80-311111 | 1118113 from SICK AG is a Laser Displacement Sensor with Measure/Sensing Distance 50 to 80000 mm, Wavelength 655 nm, Response Time 33 to 68 ms, Resolution 100 µm, Repeatability 200 µm. More details for DT80-311111 | 1118113 can be seen below.

Product Specifications

Product Details

  • Part Number
    DT80-311111 | 1118113
  • Manufacturer
    SICK AG

General Parameters

  • Optical System
    Diffuse Reflection
  • Light Source
    Red Semiconductor Laser
  • Measuring Method
    Long-range/Time of Flight (ToF) Sensors
  • Output Type
    Push-Pull Output, Analog Output, NPN Output, PNP Output
  • Measure/Sensing Distance
    50 to 80000 mm
  • Wavelength
    655 nm
  • Response Time
    33 to 68 ms
  • Absolute Accuracy
    ±2 mm
  • Resolution
    100 µm
  • Repeatability
    200 µm
  • Ambient illuminance
    30000 lx
  • Supply Voltage
    12 to 30 V
  • Analog Current
    4 to 20 mA
  • Analog Voltage
    0 to 10 V
  • Beam Shape
    Spot
  • Cable Length
    0.6 m
  • Display
    4 x LED, Full color LCD display
  • Housing Material
    Metal (zinc diecast)
  • IP Rating
    IP65, IP67
  • Spot Size
    5.5 mm x 7.5 mm (at 1 m) 9), 6.5 mm x 7 mm (at 5 m), 7.5 mm x 6.5 mm (at 10 m), 12.5 mm x 8 mm (at 20 m), 21.5 mm x 11 mm (At 40 m)
  • Laser Class
    Class 2
  • Ouput time
    33 ms, 50 ms, 100 ms, 200 to 3000 ms
  • Output Current
    <100 mA
  • Power Consumption
    <2 W
  • Ripples
    <5 Vpp
  • Shock Resistance
    70 to 100 g, 3 to 6 ms
  • Switching Hysterises
    0 to 400000 mm
  • Temperature Drift/characteristics
    0.1 µm/K (Drift)
  • Vibration Resistance
    10 to 500 Hz 10 g, 13.5 g
  • Warm up time
    <1 minute
  • Window Material
    Plastic (PMMA)

Connections & Interface

  • Connector
    M12, 5-pin
  • Interface
    IO-Link

Environmental Conditions

  • Operating Temperature
    -10 to 80 Degree C
  • Storage Temperature
    -25 to 70 Degree C

Physical Properties

  • Dimensions
    33 mm x 65 mm x 57.04 mm (W x H x D)
  • Weight
    280 g
