OD2000-1301T15 | 6074382

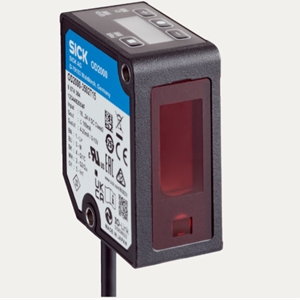

Laser Displacement Sensor by SICK AG
49 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to SICK AG.

The OD2000-1301T15 | 6074382 from SICK AG is a Laser Displacement Sensor with Measure/Sensing Distance 60 to 200 mm, Wavelength 655 nm, Response Time >0.533 ms, Repeatability 4 µm, Supply Voltage 18 to 24 VDC. More details for OD2000-1301T15 | 6074382 can be seen below.

Product Specifications

Product Details

  • Part Number
    OD2000-1301T15 | 6074382
  • Manufacturer
    SICK AG

General Parameters

  • Optical System
    Diffuse Reflection
  • Light Source
    Red Semiconductor Laser
  • Measuring Method
    Triangulation Sensors(1D)
  • Output Type
    Analog Output, NPN Output, PNP Output
  • Measure/Sensing Distance
    60 to 200 mm
  • Wavelength
    655 nm
  • Response Time
    >0.533 ms
  • Repeatability
    4 µm
  • Ambient illuminance
    3,000 lx (Artificial light), 10000 lx (Sunlight(
  • Supply Voltage
    18 to 24 VDC
  • Analog Current
    4 to 20 mA
  • Analog Voltage
    0 to 10 V
  • Beam Diameter
    300 µm (Dia.)
  • Beam Shape
    Spot
  • Cable Length
    2 m
  • Display
    OLED display, status LEDs
  • Housing Material
    Plastic (PBT)
  • IP Rating
    IP67
  • Spot Size
    300 µm (Dia.)
  • Laser Class
    Class 1
  • Linearity
    ±140 µm
  • Measuring Frequency
    <7.5 kHz
  • Ouput time
    >0.1333 ms
  • Power Consumption
    1.5 W
  • Relative Humidity
    35 to 85%
  • Ripples
    ±10%
  • Shock Resistance
    EN 60068-2-27
  • Temperature Drift/characteristics
    84 µm/K (Drift)
  • Vibration Resistance
    EN 60068-2-6, EN 60068-2-64
  • Warm up time
    <30 minutes
  • Window Material
    Plastic (PMMA)

Connections & Interface

  • Connector
    Male connector, M12, 5-pin
  • Interface
    IO-Link

Environmental Conditions

  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -20 to 60 Degree C

Physical Properties

  • Dimensions
    27 mm x 60 mm x 50 mm (W x H x D)
  • Weight
    90 g
