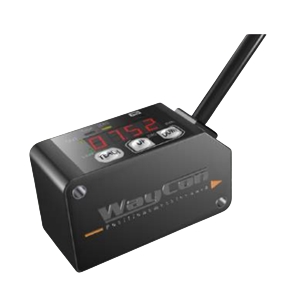

LAR-400-5V

Laser Displacement Sensor by WayCon Positionsmesstechnik
35 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to WayCon Positionsmesstechnik.

The LAR-400-5V from WayCon Positionsmesstechnik is a Laser Displacement Sensor with Measure/Sensing Distance 200 to 600 mm, Wavelength 655 nm, Response Time 1.5 to 10 ms, Repeatability 300 µm, 800 µm, Supply Voltage 12 to 24 VDC. More details for LAR-400-5V can be seen below.

Product Specifications

Product Details

  • Part Number
    LAR-400-5V
  • Manufacturer
    WayCon Positionsmesstechnik

General Parameters

  • Optical System
    Diffuse Reflection
  • Light Source
    Red Semiconductor Laser
  • Measuring Method
    Triangulation Sensors(1D)
  • Output Type
    Analog Output
  • Measure/Sensing Distance
    200 to 600 mm
  • Wavelength
    655 nm
  • Response Time
    1.5 to 10 ms
  • Repeatability
    300 µm, 800 µm
  • Ambient illuminance
    3000 lx
  • Supply Voltage
    12 to 24 VDC
  • Analog Current
    4 to 20 mA
  • Analog Voltage
    0 to 5 V
  • Beam Diameter
    500 µm
  • Cable Length
    2 m
  • Case and cover material
    Acrylic
  • Housing Material
    Aluminium die-cast
  • Laser Power
    1 mW
  • IP Rating
    IP67
  • Laser Class
    Class 2
  • Linearity
    ±0.2%, ±0.3%
  • Output Impedance
    >100 kOhms
  • Power Consumption
    <40 to 60 W
  • Relative Humidity
    35 to 85%
  • Shock Resistance
    50 g, 500 m/s
  • Temperature Drift/characteristics
    0.03%/Degree C
  • Vibration Resistance
    10 to 55 Hz, 1.5 mm

Environmental Conditions

  • Operating Temperature
    -10 to 45 Degree C
  • Storage Temperature
    -20 to 60 Degree C

Physical Properties

  • Weight
    35 g, 85 g
