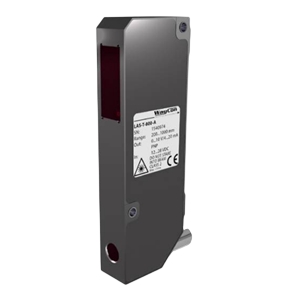

LAS-T-800

Laser Displacement Sensor by WayCon Positionsmesstechnik

Note: Your Quotation Request will be directed to WayCon Positionsmesstechnik.

The LAS-T-800 from WayCon Positionsmesstechnik is a Laser Displacement Sensor with Measure/Sensing Distance 200 to 1000 mm, Wavelength 650 nm, Response Time <4 ms, Resolution 20 to 400 µm, Supply Voltage 12 to 28 VDC. More details for LAS-T-800 can be seen below.

Product Specifications

Product Details

  • Part Number
    LAS-T-800
  • Manufacturer
    WayCon Positionsmesstechnik

General Parameters

  • Optical System
    Diffuse Reflection
  • Light Source
    Red Semiconductor Laser
  • Measuring Method
    Triangulation Sensors(1D)
  • Output Type
    PNP Output, Analog Output
  • Measure/Sensing Distance
    200 to 1000 mm
  • Wavelength
    650 nm
  • Response Time
    <4 ms
  • Resolution
    20 to 400 µm
  • Supply Voltage
    12 to 28 VDC
  • Analog Current
    4 to 20 mA
  • Analog Voltage
    0 to 10 V
  • Beam Diameter
    2 mm
  • Beam Size
    6 to 20 x 2.5 mm (H x W)
  • Housing Material
    aluminium
  • Indicators
    LED green, LED red
  • IP Rating
    IP67
  • Laser Class
    Class 2
  • Measuring Frequency
    0.25 kHz
  • Output Impedance
    >100 kOhms

Connections & Interface

  • Connector
    M12, 8-pin

Environmental Conditions

  • Operating Temperature
    0 to 50 Degree C
