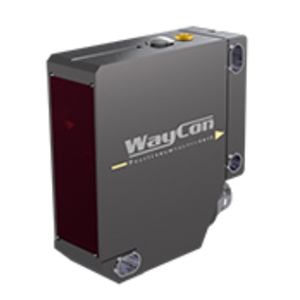

LAS2-TM-10

Laser Displacement Sensor by WayCon Positionsmesstechnik
35 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to WayCon Positionsmesstechnik.

The LAS2-TM-10 from WayCon Positionsmesstechnik is a Laser Displacement Sensor with Measure/Sensing Distance 16 to 26 mm, Wavelength 660 nm, Response Time 0.4 ms (Delay), Repeatability 4 to 5 µm, Supply Voltage 12 to 28 VDC. More details for LAS2-TM-10 can be seen below.

Product Specifications

Product Details

  • Part Number
    LAS2-TM-10
  • Manufacturer
    WayCon Positionsmesstechnik

General Parameters

  • Optical System
    Diffuse Reflection
  • Light Source
    Red Semiconductor Laser
  • Measuring Method
    Triangulation Sensors(1D)
  • Output Type
    Analog Output
  • Measure/Sensing Distance
    16 to 26 mm
  • Wavelength
    660 nm
  • Response Time
    0.4 ms (Delay)
  • Repeatability
    4 to 5 µm
  • Ambient illuminance
    <100 Klx
  • Supply Voltage
    12 to 28 VDC
  • Analog Current
    4 to 20 mA
  • Analog Voltage
    0 to 10 V
  • Beam Diameter
    0.64 to 0.29 mm
  • Case and cover material
    Glass
  • Current Consumption
    100 mA
  • Delay
    0.4 ms
  • Housing Material
    Die-cast zinc
  • Indicators
    LED green, LED red
  • Laser Power
    1.6 mW (Pulse)
  • IP Rating
    IP67
  • Laser Class
    Class 2
  • Linearity
    ±0.13%
  • Measuring Frequency
    5 kHz
  • Output Impedance
    >100 kOhms
  • Pulse Duration
    0.001 to 1 ms
  • Shock Resistance
    30 g, 11 ms
  • Temperature Drift/characteristics
    0.01%/K
  • Vibration Resistance
    10 to 55 Hz, 1 mm

Connections & Interface

  • Connector
    M8

Environmental Conditions

  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -20 to 60 Degree C

Physical Properties

  • Dimensions
    41 g
