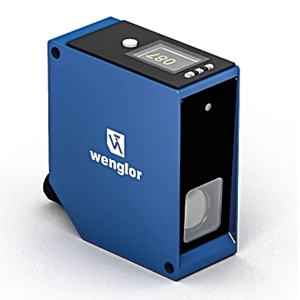

P3EC441

Laser Displacement Sensor by Wenglor
49 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Wenglor.

The P3EC441 from Wenglor is a Laser Displacement Sensor with Measure/Sensing Distance 150 to 1000 mm, Wavelength 405 nm, Response Time <0.5 ms, Supply Voltage 18 to 30 VDC. More details for P3EC441 can be seen below.

Product Specifications

Product Details

  • Part Number
    P3EC441
  • Manufacturer
    Wenglor

General Parameters

  • Optical System
    Diffuse Reflection
  • Light Source
    Blue Semiconductor Laser
  • Measuring Method
    Triangulation Sensors(1D)
  • Output Type
    Error Output, Push-Pull Output, Analog Output, NPN Output, PNP Output
  • Measure/Sensing Distance
    150 to 1000 mm
  • Wavelength
    405 nm
  • Response Time
    <0.5 ms
  • Ambient illuminance
    10000 lx
  • Supply Voltage
    18 to 30 VDC
  • Analog Current
    4 to 20 mA
  • Analog Voltage
    0 to 10 V
  • Beam Shape
    Spot
  • Case and cover material
    Plastic, PMMA
  • Certifications
    CE
  • Current Consumption
    <70 mA
  • Detector
    CMOS
  • Housing Material
    Aluminum, Anodised, PLastic, ABS
  • IP Rating
    IP67
  • Spot Size
    1 mm
  • Laser Class
    Class 2
  • Lifetime
    100000 h
  • Linearity deviation
    850 µm
  • Reproducibility
    250 µm, 30 µm (Sigma)
  • RoHs
    Yes
  • Temperature Drift/characteristics
    <75 µm/K (Drift)

Connections & Interface

  • Connector
    M12 x 1:5 Pin
  • Interface
    IO-Link

Environmental Conditions

  • Operating Temperature
    0 to 60 Degree C

Physical Properties

  • Weight
    188 g
