PNBC105

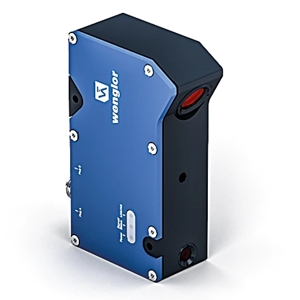

Laser Displacement Sensor by Wenglor
49 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Wenglor.

The PNBC105 from Wenglor is a Laser Displacement Sensor with Measure/Sensing Distance 90 to 190 mm, Wavelength 658 nm, Response Time <33 µs, Supply Voltage 15 to 30 VDC. More details for PNBC105 can be seen below.

Product Specifications

Product Details

  • Part Number
    PNBC105
  • Manufacturer
    Wenglor

General Parameters

  • Optical System
    Diffuse Reflection
  • Light Source
    Red Semiconductor Laser
  • Measuring Method
    Triangulation Sensors(1D)
  • Output Type
    Push-Pull Output, Analog Output, NPN Output, PNP Output
  • Measure/Sensing Distance
    90 to 190 mm
  • Wavelength
    658 nm
  • Response Time
    <33 µs
  • Ambient illuminance
    10000 lx
  • Supply Voltage
    15 to 30 VDC
  • Analog Current
    4 to 20 mA
  • Analog Voltage
    0 to 10 V
  • Beam Shape
    Spot
  • Case and cover material
    Glass
  • Certifications
    CE
  • Current Consumption
    280 mA
  • Detector
    CMOS
  • Housing Material
    Alumnium
  • IP Rating
    IP67
  • Spot Size
    0.75 mm
  • Laser Class
    Class 2
  • Lifetime
    100000 h
  • Linearity deviation
    50 µm
  • Output Current
    100 mA
  • Reproducibility
    30 µm, 3 µm (Sigma)
  • RoHs
    Yes
  • Switching Frequency
    15 kHz
  • Switching Output Voltage Drop
    <1.5 V
  • Temperature Drift/characteristics
    <5 µm/K (Drift)

Connections & Interface

  • Connector
    M12 x 1:4 Pin, 1:8 Pin
  • Interface
    Ethernet TCP/IP EtherCat

Environmental Conditions

  • Operating Temperature
    -10 to 40 Degree C

Physical Properties

  • Weight
    240 g

Technical Documents
Click to view more product details on manufacturer's website
