PS100

Laser Power Meter by CNI Laser
Download Datasheet Request Quote

Note: Your Quotation Request will be directed to CNI Laser.

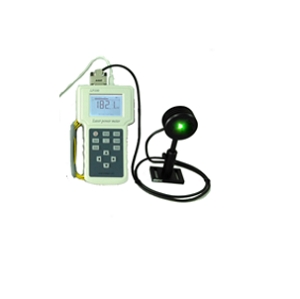

The PS100 from CNI Laser is a Photoelectric Laser Power Meter that operates from 320 to 1100 nm. It has a power range of 2 nW -100 mW with an active area diameter of 8 mm. The laser power meter comes with 1 year warranty.

 Product Specifications

    Product Details

    • Part Number :
      PS100
    • Manufacturer :
      CNI Laser
    • Description :
      Si Photo diode High Precision Photoelectric Laser Power Meter

    General Parameters

    • Power Supply :
      100 to 240 VAC, 50/60 Hz, 1.4A
    • Response Time :
      2 sec.
    • Calibration Uncertainty :
      ±2%
    • Detector Type :
      Silicon, Photodiode
    • Equipment Type :
      Handheld
    • Measurement Display :
      nW, µW, mW, dBm, dB
    • Photo Detector Power Range :
      2nW -100mW
    • Supply Voltage :
      0 to 9 VDC
    • Power Range :
      2nW -100mW
    • Wavelength Range :
      320 to 1100 nm

    Temperature

    • Operating Temperature display :
      5 to 45 Degree C
    • Storage Temperature :
      -20 to 70 Degree C

    Physical Properties

    • Active Area Diameter :
      8 mm
    • Weight :
      0.8 kg

    Other Specifications

    • Battery Life :
      1 Year
