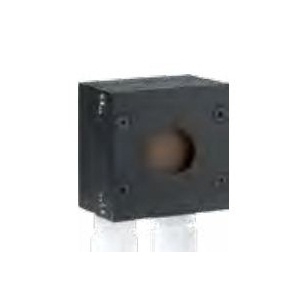

UP19K-150W-H5

Laser Power Meter by Gentec-EO
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Gentec-EO.

The UP19K-150W-H5 from Gentec-EO is a Laser Power Meter with Power Range 150 W to 190 W, Wavelength Range 0.19 to 20 µm. More details for UP19K-150W-H5 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    UP19K-150W-H5
  • Manufacturer
    Gentec-EO
  • Description
    19 mm Ø, 150 W, Water-Cooled, 36 kW/cm2. Includes stand.

General Parameters

  • Energy Pulse Width
    88 ms
  • Energy Repetition Period
    4 sec
  • Energy Sensitivity :
    0.65 mV/J
  • Reproducibility :
    ±0.5 %
  • Response Time
    0.6 sec
  • Aperture
    19 mm Ø
  • Calibration Uncertainty
    ±2.5 %
  • Detector Type
    Thermopile
  • Equipment Type
    Benchtop
  • Measurement Display
    W, J
  • Mesurable Energy
    15 J
  • Noise Equivalent Energy
    0.02 J
  • Noise Equivalent Power
    1 mW
  • Power Density
    36 kW/cm2
  • Sensitivity
    0.65 mV/W
  • Power Range
    150 W to 190 W
  • Wavelength Range
    0.19 to 20 µm
  • Note
    Postfix: -D0, -INT, -INT-D0 for No Stand, Include stand With INTEGRA embedded moniter & No stand with INTEGRA embedded moniter respectively with part numbers

Physical Properties

  • Dimensions
    50 x 50 x 33 mm
  • Weight
    0.24kg

Other Specifications

  • Compliances
    CE
  • Cooling Method
    Water-Cooled
  • RoHs
    Yes
