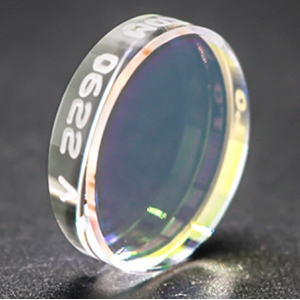

CRD-246-49-1742-1000-0

Optical Mirror by LD-PD Inc
8 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to LD-PD Inc.

Central Wavelength 1742nm ; Size 1inch; Radius of curvature 1000mm; Reflectance values >99.99%

Product Specifications

View similar products

Product Details

  • Part Number
    CRD-246-49-1742-1000-0
  • Manufacturer
    LD-PD Inc
  • Description
    1742nm 1inch CRD ultra low loss mirrors

General Parameters

  • Mirror Type
    Dielectric Mirror
  • Mirror Shape
    Round
  • Wavelength Range
    1742 nm
  • Chamfers
    0.1 to 0.3 mm x 45 Degree
  • Angle of Incidence
    0 to 45 Degree
  • Clear Aperture
    >80%
  • Mirror Thickness
    6.35 mm
  • Mirror Diameter
    1 Inch
  • Diameter Tolerance
    +0.0/-0.1 mm
  • Parallelism
    <5 min arc
  • Radius of Curvature
    1000 mm
  • Reflectance
    >99.99%
  • Surface Flatness
    3/0.1 (0.1/0.05)
  • Surface Roughness
    Å/20
  • Thickness Tolerance
    ±0.1 mm
  • Application
    CRDS, Ring laser Gyro, TDLAS Cell
  • Operating Temperature
    -5 to 70 Degree C
  • Note
    Radius of curvature: 1000 mm
