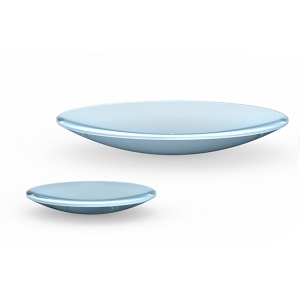

PCV-R1000-UVFS-12.7-ET6.35-PR176-AR744

Optical Mirror by OPTOMAN
164 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OPTOMAN.

The PCV-R1000-UVFS-12.7-ET6.35-PR176-AR744 from OPTOMAN is a Optical Mirror with Wavelength Range 671 to 1064 nm, Mirror Thickness 6.33 mm, Mirror Diameter 12.7 mm. More details for PCV-R1000-UVFS-12.7-ET6.35-PR176-AR744 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PCV-R1000-UVFS-12.7-ET6.35-PR176-AR744
  • Manufacturer
    OPTOMAN
  • Description
    671 to 1064 nm UV Fused Silica 20-10 scratch-dig Concave Mirror

General Parameters

  • Mirror Type
    Plano-Concave
  • Mirror Shape
    Round
  • Wavelength Range
    671 to 1064 nm
  • Chamfers
    0.1-0.3 x 45 Degree
  • Chips
    <0.2 mm
  • Wavelength Region
    Visible, NIR
  • Clear Aperture
    10 mm
  • Substrate/Material
    UVFS
  • Mirror Thickness
    6.33 mm
  • Mirror Diameter
    12.7 mm
  • Diameter Tolerance
    +0/-0.1 mm
  • Edge Thickness
    6.35 mm
  • Radius of Curvature
    -1000 mm
  • Surface Quality
    20-10 scratch-dig
  • Surface Irregularity(S1/S2)
    λ/10
  • Thickness Tolerance
    ±0.1 mm
  • Application
    Resonators
  • Note
    Centration Error: <3 arcmin
