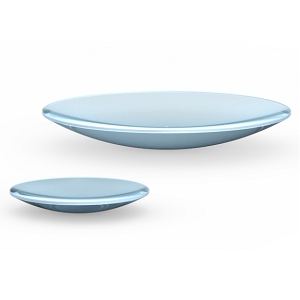

PCV-R2000-UVFS-25.4-ET6.35-LLM188

Optical Mirror by OPTOMAN
164 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OPTOMAN.

The PCV-R2000-UVFS-25.4-ET6.35-LLM188 from OPTOMAN is a Optical Mirror with Wavelength Range 515 nm, Mirror Thickness 6.31 mm, Mirror Diameter 25.4 mm. More details for PCV-R2000-UVFS-25.4-ET6.35-LLM188 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PCV-R2000-UVFS-25.4-ET6.35-LLM188
  • Manufacturer
    OPTOMAN
  • Description
    IBS coated Plano - Concave Ultrafast Laser Mirror for Yb:YAG II harmonic

General Parameters

  • Mirror Type
    Ultrafast Mirror, Laser Mirror, YAG Laser Mirror
  • Mirror Shape
    Plano-Concave
  • Wavelength Range
    515 nm
  • Chamfers
    0.2-0.4 mm x 45°
  • Chips
    <0.2 mm stoned
  • Wavelength Region
    Visible
  • Angle of Incidence
    0 Degree
  • Clear Aperture
    min 20 mm centered
  • Substrate/Material
    UV Fused Silica
  • Coating Material
    S1: IBS, S2: uncoated
  • Mirror Thickness
    6.31 mm
  • Mirror Diameter
    25.4 mm
  • Diameter Tolerance
    +0/-0.1 mm
  • Edge Thickness
    6.35 mm ±0.1 mm
  • Radius of Curvature
    -2000 mm ±1%
  • Reflectance
    S1 (arrow mark): HR>99.9% @ 515 nm, AOI=0° S2: uncoated
  • Surface Quality
    20-10 scratch-dig
  • Surface Irregularity(S1/S2)
    S1: λ/8 @ 633 mm over CA
  • Note
    Centration error: <3 arcmin
