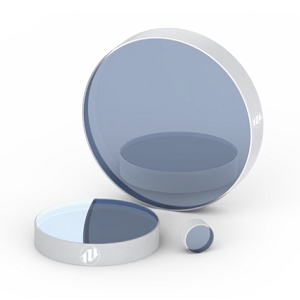

PP-UVFS-25.4-6.35-BBHR78

Optical Mirror by OPTOMAN
164 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OPTOMAN.

The PP-UVFS-25.4-6.35-BBHR78 from OPTOMAN is a Optical Mirror with Wavelength Range 1064 nm, Mirror Thickness 6.35 mm, Mirror Diameter 25.4 mm. More details for PP-UVFS-25.4-6.35-BBHR78 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PP-UVFS-25.4-6.35-BBHR78
  • Manufacturer
    OPTOMAN
  • Description
    IBS coated Laser Mirror for Nd:YAG I harmonic

General Parameters

  • Mirror Type
    Laser Mirror, YAG Laser Mirror
  • Mirror Shape
    Round
  • Wavelength Range
    1064 nm
  • Chamfers
    0.2 to 0.4 mm x 45 Degree
  • Chips
    0.2 mm Stoned
  • Wavelength Region
    IR
  • Angle of Incidence
    50 Degree
  • Clear Aperture
    20 mm
  • Substrate/Material
    UV Fused Silica
  • Coating Material
    S1: IBS, S2: uncoated
  • Mirror Thickness
    6.35 mm
  • Mirror Diameter
    25.4 mm
  • Diameter Tolerance
    +0/-0.1 mm
  • Parallelism
    5 arcmin
  • Reflectance
    0.999
  • Surface Flatness
    λ/4@633 nm
  • Surface Quality
    20-10 scratch-dig
  • Thickness Tolerance
    ±0.1 mm
