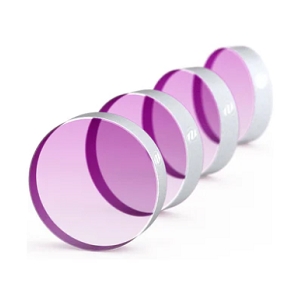

PP-UVFS-25.4-6.35-LLM198

Optical Mirror by OPTOMAN
164 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OPTOMAN.

The PP-UVFS-25.4-6.35-LLM198 from OPTOMAN is a Optical Mirror with Wavelength Range 500 to 1070 nm, Mirror Thickness 6.35 mm, Mirror Diameter 25.4 mm. More details for PP-UVFS-25.4-6.35-LLM198 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PP-UVFS-25.4-6.35-LLM198
  • Manufacturer
    OPTOMAN
  • Description
    IBS coated Ultrafast Laser Mirror for Yb:YAG I and II harmonics

General Parameters

  • Mirror Type
    Ultrafast Mirror, Laser Mirror, YAG Laser Mirror
  • Mirror Shape
    Round
  • Wavelength Range
    500 to 1070 nm
  • Chamfers
    0.1-0.4 mm x 45°
  • Chips
    <0.2 mm stoned
  • Wavelength Region
    Visible
  • Angle of Incidence
    45 Degree
  • Clear Aperture
    min 22 mm, centered
  • Substrate/Material
    UV Fused Silica
  • Coating Material
    IBS
  • Mirror Thickness
    6.35 mm
  • Mirror Diameter
    25.4 mm
  • Diameter Tolerance
    +0/-0.1 mm
  • Parallelism
    <3 arcmin
  • Reflectance
    S1 (arrow mark): Rs > 99.9% @500-540nm + 1000-1070 nm Rp > 99.8% @507-527nm Rp > 99.9% @1005-1070nm |GDD(Rs)|<35fs^2 @500-540nm |GDD(Rp)|<50fs^2 @510-525nm |GDD(Rs)|<20fs^2 @1000-1070nm |GDD(Rp)|<40fs^2 @1010-1055nm S2: SCC coating for improved S1 flatnes
  • Surface Flatness
    S1: <λ/6@633 nm over dia. 20 mm aperture
  • Surface Quality
    10-5 scratch-dig
  • Thickness Tolerance
    ±0.1 mm
