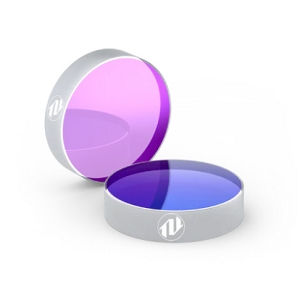

PP-UVFS-25.4-6.35-LLM252

Optical Mirror by OPTOMAN
164 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OPTOMAN.

The PP-UVFS-25.4-6.35-LLM252 from OPTOMAN is a Optical Mirror with Wavelength Range 740 to 860 nm, Mirror Thickness 6.35 mm, Mirror Diameter 25.4 mm. More details for PP-UVFS-25.4-6.35-LLM252 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PP-UVFS-25.4-6.35-LLM252
  • Manufacturer
    OPTOMAN
  • Description
    IBS coated Broadband Ultrafast Laser Mirror for Ti:Sapphire laser

General Parameters

  • Mirror Type
    Ultrafast Mirror, Laser Mirror
  • Mirror Shape
    Round
  • Wavelength Range
    740 to 860 nm
  • Chamfers
    0.2 – 0.4 mm x 45°
  • Chips
    <0.25 mm
  • Wavelength Region
    Visible
  • Angle of Incidence
    45 Degree
  • Clear Aperture
    >85%
  • Substrate/Material
    UV Fused Silica
  • Coating Material
    S1: IBS, S2: uncoated
  • Mirror Thickness
    6.35 mm
  • Mirror Diameter
    25.4 mm
  • Diameter Tolerance
    +0/-0.1 mm
  • Parallelism
    <5 arcmin (error)
  • Reflectance
    S1 (arrow marks): HRs>99.8% @ 740 – 860 nm + HRp>98.0% @ 750 – 850 nm, AOI=45° (|GDDrs| < 30 fss @ 740-860 + |GDDrp| < 100 fss @760-840 nm) S2: Uncoated
  • Surface Flatness
    S1: λ/8 @ 633 nm over 10 mm diameter
  • Surface Quality
    20-10 scratch-dig
  • Surface Irregularity(S1/S2)
    S1: λ/10 @ 633 nm over CA
  • Thickness Tolerance
    ±0.1 mm
