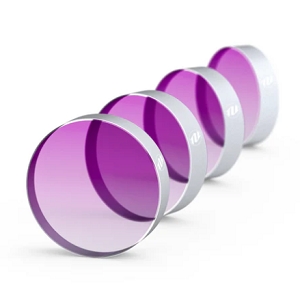

PP-UVFS-30.0-6.35-ULLM3

Optical Mirror by OPTOMAN
164 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OPTOMAN.

The PP-UVFS-30.0-6.35-ULLM3 from OPTOMAN is a Optical Mirror with Wavelength Range 500 to 530 nm, Mirror Thickness 6.35 mm, Mirror Diameter 30 mm. More details for PP-UVFS-30.0-6.35-ULLM3 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PP-UVFS-30.0-6.35-ULLM3
  • Manufacturer
    OPTOMAN
  • Description
    500 to 530 nm, UV Fused Silica Ultrafast Laser Mirror

General Parameters

  • Mirror Type
    Ultrafast Laser Mirror
  • Mirror Shape
    Round
  • Wavelength Range
    500 to 530 nm
  • Chamfers
    0.1 - 0.4 mm x 45 Degree
  • Wavelength Region
    Visible
  • Group Delay Dispersion
    Rs/Rp <20 fs2
  • Angle of Incidence
    45 Degree
  • Clear Aperture
    24 mm
  • Substrate/Material
    UVFS
  • Coating Material
    IBS
  • Mirror Thickness
    6.35 mm
  • Mirror Diameter
    30 mm
  • Diameter Tolerance
    +0/-0.1 mm
  • Parallelism
    5 arcmin
  • Reflectance
    S1: HRs >99.95%, HRp >99.9% @500-530 nm
  • Surface Flatness
    λ/8
  • Surface Quality
    20-10 scratch-dig
  • Thickness Tolerance
    ±0.1 mm
