PP-UVFS-50.8-9.52-LLM135

Optical Mirror by OPTOMAN
164 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OPTOMAN.

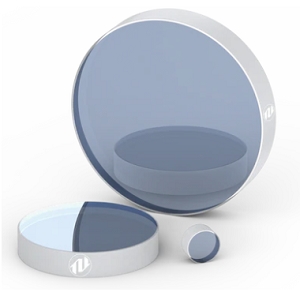

The PP-UVFS-50.8-9.52-LLM135 from OPTOMAN is a Optical Mirror with Wavelength Range 940 to 980 nm, Mirror Thickness 9.52 mm, Mirror Diameter 50.8 mm. More details for PP-UVFS-50.8-9.52-LLM135 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PP-UVFS-50.8-9.52-LLM135
  • Manufacturer
    OPTOMAN
  • Description
    IBS coated Low Loss Laser Mirror at 940-980 nm.

General Parameters

  • Mirror Type
    Laser Mirror
  • Mirror Shape
    Round
  • Wavelength Range
    940 to 980 nm
  • Chamfers
    0.2 to 0.3 mm x 45 Degree
  • Chips
    0.3 mm Stoned
  • Wavelength Region
    IR
  • Laser Induced Damage Threshold (LIDT)
    >5 kW/cm2
  • Angle of Incidence
    45 Degree
  • Clear Aperture
    40 mm
  • Substrate/Material
    UV Fused Silica
  • Coating Material
    S1: IBS, S2: uncoated
  • Mirror Thickness
    9.52 mm
  • Mirror Diameter
    50.8 mm
  • Diameter Tolerance
    +0/-0.1 mm
  • Parallelism
    5 arcmin
  • Reflectance
    0.999
  • Surface Flatness
    λ/8@633 nm
  • Surface Quality
    20-10 scratch-dig
  • Thickness Tolerance
    ±0.1 mm
