TS-0914R

Optical Mirror by Sugitoh
69 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Sugitoh.

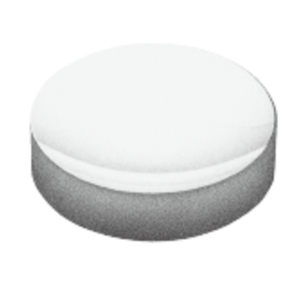

The TS-0914R from Sugitoh is a Optical Mirror with Wavelength Range 400 to 700 nm, Focal Length 150 mm, Mirror Thickness 3 mm, Mirror Diameter 20 mm. More details for TS-0914R can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TS-0914R
  • Manufacturer
    Sugitoh
  • Description
    400 to 700 nm Concave Mirror with 150 mm Focal Length

General Parameters

  • Mirror Type
    Concave Mirror
  • Mirror Shape
    Round
  • Wavelength Range
    400 to 700 nm
  • Chamfers
    All circumferences or all edge lines are chamfered
  • Wavelength Region
    Visible
  • Focal Length
    150 mm
  • Angle of Incidence
    0 Degree
  • Substrate/Material
    BK7
  • Coating Material
    Al-SiO
  • Mirror Thickness
    3 mm
  • Mirror Diameter
    20 mm
  • Diameter Tolerance
    +0/-0.2 mm
  • RoHS
    Yes
  • Reflectance
    85%
  • Surface Quality
    60-40 scratch-dig
  • Thickness Tolerance
    ±0.2 mm
  • Application
    Reflection telescope, Concentration of visible light and near infrared light
  • Note
    Reflactive Index: 1.51680/nd
