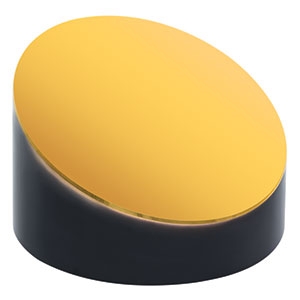

MPD244-M01

Optical Mirror by Thorlabs Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The MPD244-M01 from Thorlabs Inc is a Optical Mirror with Mirror Thickness 38 mm, Mirror Diameter 50.8 mm. More details for MPD244-M01 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MPD244-M01
  • Manufacturer
    Thorlabs Inc
  • Description
    45°, Ø2" Off-Axis Parabolic Mirror, Prot. Gold, RFL = 4"

General Parameters

  • Mirror Type
    Off-Axis Parabolic Mirror
  • Mirror Shape
    Parabolic
  • Parent Focal Length
    86.7 mm
  • Parent Focal Length Tolerance
    ±1%
  • Reflected Focal Length
    50.8 mm(2")
  • Reflected Focal Length Tolerance
    ±1%
  • Clear Aperture
    90% of diameter
  • Substrate/Material
    Aluminum
  • Coating Material
    Protected Silver
  • Mirror Thickness
    38 mm
  • Mirror Diameter
    50.8 mm
  • Off-Axis Angle
    45 Degree
  • RoHS
    Yes
  • Reflectance
    0.96
  • Surface Quality
    40-20 scratch-dig
  • Surface Roughness
    <100 Å (RMS)
  • Note
    Bottom Mounting Holes: Three 8-32 Taps, Reflected Wavefront Error: λ/4 at 633 nm
