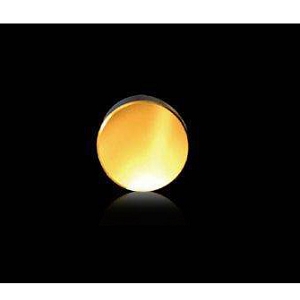

TCM603

Optical Mirror by Tian Cheng Optic
9 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Tian Cheng Optic.

The TCM603 from Tian Cheng Optic is a Optical Mirror with Wavelength Range 632.8 nm, Mirror Thickness 3 mm, Mirror Diameter 25 mm. More details for TCM603 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    TCM603
  • Manufacturer
    Tian Cheng Optic
  • Description
    632.8 nm Optical Mirror with BK7, Optical Glass material

General Parameters

  • Mirror Type
    Metallic Mirror
  • Mirror Shape
    Round
  • Wavelength Range
    632.8 nm
  • Chamfers
    0.25 mm x 45 Degree
  • Clear Aperture
    >85%
  • Substrate/Material
    BK7
  • Coating Material
    Au Protected
  • Dimension
    25 (Dia) x 3 mm
  • Dimension Tolerance
    ±0.2 nm
  • Mirror Thickness
    3 mm
  • Mirror Diameter
    25 mm
  • Diameter Tolerance
    +0/-0.1 mm
  • Parallelism
    <30 arc minutes
  • Reflectance
    R>90% (Coating)
  • Surface Flatness
    λ/4
  • Surface Quality
    60-40 scratch-dig
