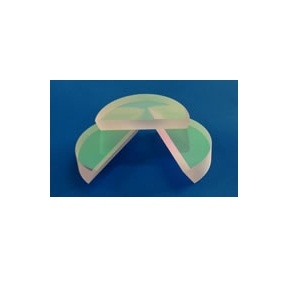

DSM0025-4

Optical Mirror by Union Optic Inc.
88 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Union Optic Inc..

The DSM0025-4 from Union Optic Inc. is a Optical Mirror with Wavelength Range 450 to 700 nm, Mirror Thickness 6.35 mm, Mirror Diameter 25.4mm(1 Inch). More details for DSM0025-4 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DSM0025-4
  • Manufacturer
    Union Optic Inc.

General Parameters

  • Mirror Type
    D-Shaped Mirror
  • Mirror Shape
    D-Shape
  • Wavelength Range
    450 to 700 nm
  • Angle of Incidence
    0 to 45 degree
  • Clear Aperture
    0.9
  • Substrate/Material
    BK7
  • Coating Material
    Dielectric
  • Mirror Thickness
    6.35 mm
  • Mirror Diameter
    25.4mm(1 Inch)
  • Diameter Tolerance
    +0.0/-0.2mm
  • Parallelism
    3 arcmin
  • Surface Flatness
    λ/[email protected]
  • Surface Quality
    60-40 scratch-dig
  • Thickness Tolerance
    ±0.2 mm
  • Note
    Damage Threshold:->1J/cm2, 20ns, 20Hz, @1064nm
