LLM0025-45

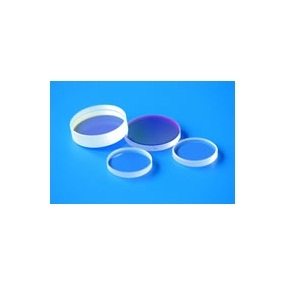

Optical Mirror by Union Optic Inc.
88 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Union Optic Inc..

The LLM0025-45 from Union Optic Inc. is a Optical Mirror with Wavelength Range 260 to 270 nm, Mirror Thickness 6.35 mm, Mirror Diameter 25.4mm(1 Inch). More details for LLM0025-45 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LLM0025-45
  • Manufacturer
    Union Optic Inc.

General Parameters

  • Mirror Type
    Dielectric Laser Line Mirror
  • Mirror Shape
    Round
  • Wavelength Range
    260 to 270 nm
  • Angle of Incidence
    45 degree
  • Clear Aperture
    0.9
  • Substrate/Material
    BK7
  • Coating Material
    Dielectric, HR Coating
  • Mirror Thickness
    6.35 mm
  • Mirror Diameter
    25.4mm(1 Inch)
  • Diameter Tolerance
    +0.0/-0.2mm
  • RoHS
    Yes
  • Reflectance
    0.99
  • Surface Flatness
    λ/[email protected]
  • Surface Quality
    60-40 scratch-dig
  • Thickness Tolerance
    ±0.2 mm
