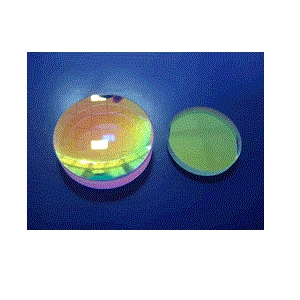

LRM0012

Optical Mirror by Union Optic Inc.
88 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Union Optic Inc..

The LRM0012 from Union Optic Inc. is a Optical Mirror with Wavelength Range 1064 nm, Mirror Thickness 3 mm, Mirror Diameter 12.7mm(0.5 Inch). More details for LRM0012 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LRM0012
  • Manufacturer
    Union Optic Inc.

General Parameters

  • Mirror Type
    Nd:YAG Laser Rear Mirror
  • Mirror Shape
    Round
  • Wavelength Range
    1064 nm
  • Clear Aperture
    0.9
  • Substrate/Material
    BK7
  • Coating Material
    Dielectric, HR Coating
  • Mirror Thickness
    3 mm
  • Mirror Diameter
    12.7mm(0.5 Inch)
  • Diameter Tolerance
    +0.0/-0.2mm
  • Surface Flatness
    Spherical: λ/[email protected], rangeEPlano: λ/8 @632.8nm
  • Surface Quality
    60-40 scratch-dig
  • Thickness Tolerance
    ±0.2 mm
  • Note
    Wedge:-3 arcmin, Damage Threshold:->5J/cm2, 20ns, 20Hz, @1064nm
