RAM0105-E

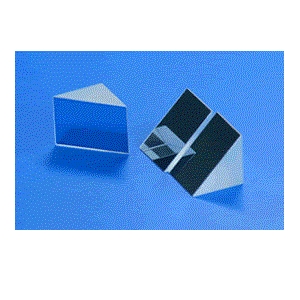

Optical Mirror by Union Optic Inc.
88 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Union Optic Inc..

The RAM0105-E from Union Optic Inc. is a Optical Mirror with Wavelength Range 400 to 700 nm. More details for RAM0105-E can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    RAM0105-E
  • Manufacturer
    Union Optic Inc.

General Parameters

  • Mirror Type
    Right Angle Prism Mirror-External Reflectance
  • Wavelength Range
    400 to 700 nm
  • Clear Aperture
    0.9
  • Substrate/Material
    BK7
  • Coating Material
    Metal, HR Coating
  • Dimension
    5 x 5 x 7.1 mm
  • Dimension Tolerance
    +0.0/-0.2mm
  • Surface Flatness
    λ/[email protected]
  • Surface Quality
    60-40 scratch-dig
  • Thickness Tolerance
    ±0.2 mm
  • Note
    Damage Threshold:->1J/cm2, 20ns, 20Hz, @1064nm
