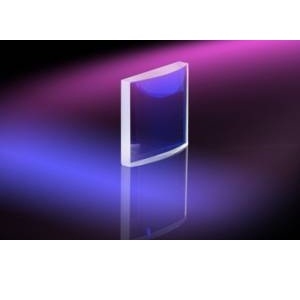

PCYX2302

Optical Lens by Dayoptics, Inc
Request Quote

Note: Your Quotation Request will be directed to Dayoptics, Inc.

The PCYX2302 from Dayoptics, Inc is a Optical Lens with Wavelength Range 589.6 nm, Focal Length 50 mm, Center Thickness 3 mm, Diameter 10 mm, Radius -22.9 mm. More details for PCYX2302 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PCYX2302
  • Manufacturer
    Dayoptics, Inc

General Parameters

  • Sub Type
    Plano-Convex Lens
  • Lens Shape
    Spherical Lens, Cylindrical Lens
  • Wavelength Range
    589.6 nm
  • Design Wavelength
    589.6 nm
  • Focal Length
    50 mm
  • Focal Length Tolerance
    ±2%
  • Center Thickness
    3 mm
  • Center Thickness Tolerance
    ±0.1 mm
  • Diameter
    10 mm
  • Radius
    -22.9 mm
  • Radius 1
    -22.9 mm
  • Clear Aperture
    0.85
  • Diameter Tolerance
    +0.0-0.15 mm
  • Edge Thickness(ET)
    2.447 mm
  • Centration Error
    3 arcmin
  • Chamfers
    0.25 mm x 45 Degree
  • Coating
    Uncoated
  • Substrate/Material
    Fused Silica
  • Surface Accuracy
    λ/4
  • Surface Quality
    60-40 scratch-dig
