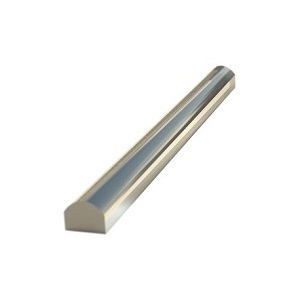

ACL_PCX_INF_BK7_19.032_12.00_AR(750-1100)

Optical Lens by Doric Lenses Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Doric Lenses Inc.

The ACL_PCX_INF_BK7_19.032_12.00_AR(750-1100) from Doric Lenses Inc is a Optical Lens with Wavelength Range 750 to 1100 nm, Center Thickness 8.5 mm. More details for ACL_PCX_INF_BK7_19.032_12.00_AR(750-1100) can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ACL_PCX_INF_BK7_19.032_12.00_AR(750-1100)
  • Manufacturer
    Doric Lenses Inc

General Parameters

  • Sub Type
    Plano-Convex Lens
  • Lens Shape
    Spherical Lens
  • Wavelength Range
    750 to 1100 nm
  • Focal Length Tolerance
    +/- 1-3% mm
  • Effective Focal Length(EFL)
    19.032 mm
  • Dimension
    Height:-19 mm
  • Center Thickness
    8.5 mm
  • Clear Aperture
    80 - 90% of height
  • Diameter Tolerance
    +/- 0.05 - 0.20 mm
  • Aperture(f-number)
    Working distance:- 13.432 mm
  • Coating
    NIR, AR coating
  • Substrate/Material
    BK7
  • Surface Accuracy
    λ/4
