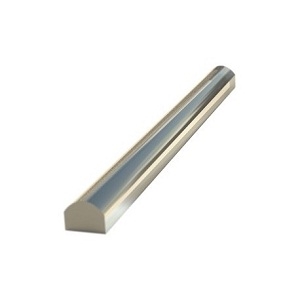

ACL_PCX_INF_S-TIH53_0.275(L)_12.00_HPAR(800-900)

Optical Lens by Doric Lenses Inc
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Doric Lenses Inc.

The ACL_PCX_INF_S-TIH53_0.275(L)_12.00_HPAR(800-900) from Doric Lenses Inc is a Optical Lens with Wavelength Range 800 to 900 nm, Center Thickness 0.375 mm. More details for ACL_PCX_INF_S-TIH53_0.275(L)_12.00_HPAR(800-900) can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ACL_PCX_INF_S-TIH53_0.275(L)_12.00_HPAR(800-900)
  • Manufacturer
    Doric Lenses Inc

General Parameters

  • Lens Type
    FAC Lenses
  • Wavelength Range
    800 to 900 nm
  • Focal Length Tolerance
    ±3 %
  • Effective Focal Length(EFL)
    0.275 mm
  • Dimension
    12 x 0.49 mm(L x H)
  • Center Thickness
    0.375 mm
  • Aperture(f-number)
    Working distance:- 0.07 mm
  • Numerical Aperture
    0.8
  • Coating
    2S-NIR, AR coating
  • Substrate/Material
    S-TiH53
